Our 3D Wheel Alignment Systems provide fast and accurate wheel geometry measurements for modern workshops. The range includes a fixed 3D wheel aligner and a movable 3D wheel alignment system, delivering precise camber, caster, toe, KPI, setback and thrust angle measurements while improving workshop productivity.
Movable 3D Wheel Alignment System
Portable 3D wheel alignment equipment designed for workshops using different service bays and lifts.
Key Features
- Movable structure for multiple workstations.
- Automatic camera beam adjustment.
- Measures Toe, Camber, Caster, KPI, Setback and Thrust Angle.
- Fast 3D measurement with high accuracy.
- Suitable for passenger cars and SUVs.
Applications
- Automotive Workshops
- OEM Dealerships
- Tyre & Alignment Centres
- Fleet Maintenance

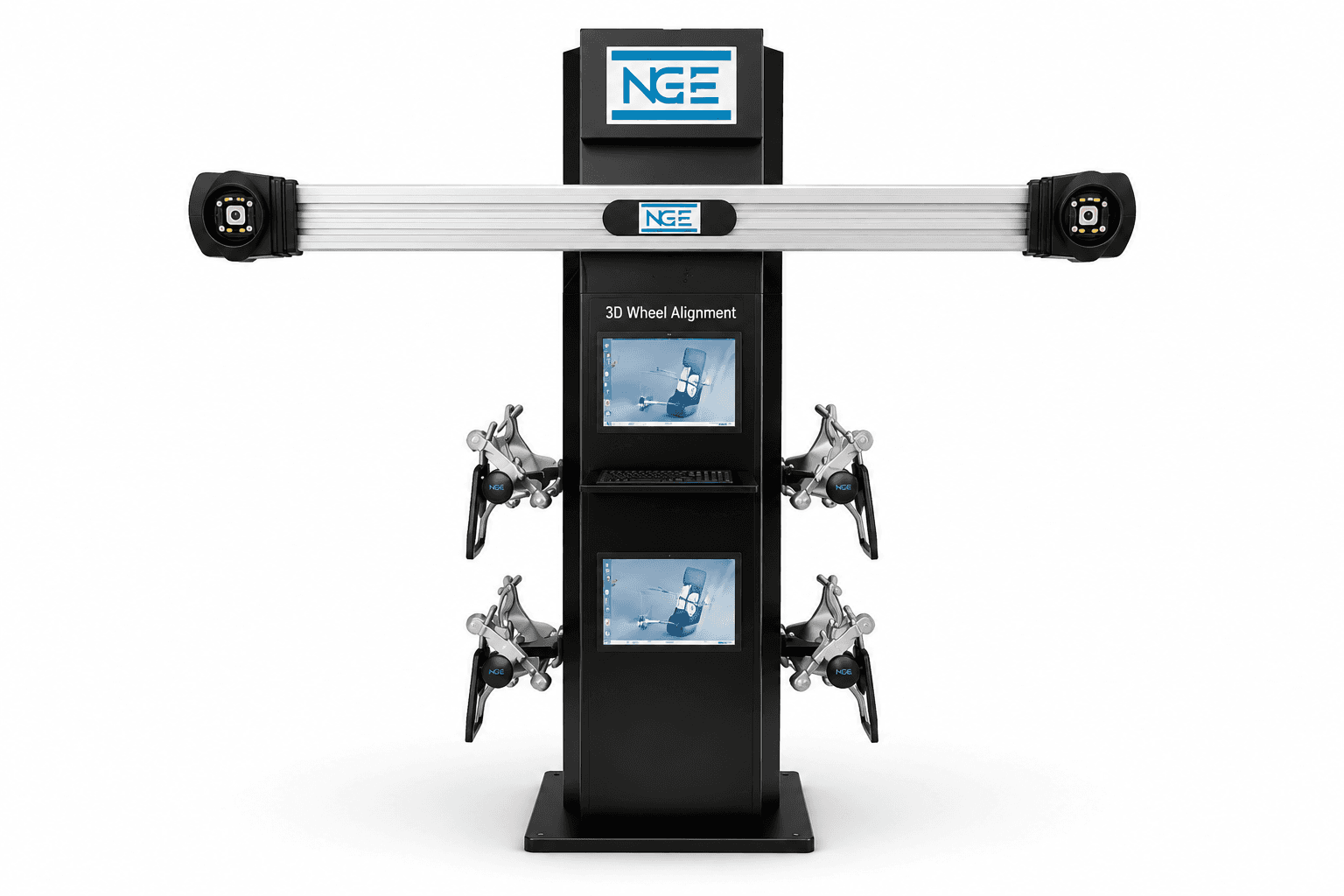

3D Wheel Alignment System
Advanced fixed 3D wheel alignment machine delivering accurate wheel geometry for professional automotive service centres.
Key Features
- High-resolution camera technology.
- Real-time alignment display.
- Comprehensive vehicle database.
- Quick calibration and reporting.
- Compatible with alignment lifts.
Applications
- Automotive Workshops
- OEM Dealerships
- Tyre & Alignment Centres
- Fleet Maintenance
Working Principle
- Mount targets on all four wheels.
- Cameras capture wheel position.
- Software calculates alignment angles.
- Adjust suspension as guided.
- Generate final alignment report.
Measurements
| Item | Accuracy | Range Total | Range |
|---|---|---|---|
| Camber | ±0.02° | ±8° | ±8° |
| Caster | ±0.05° | ±19° | ±19° |
| Front SAI | ±0.05° | ±19° | ±19° |
| Total Toe | ±0.02° | ±2° | ±2° |
| Thrust Angle | ±0.02° | ±2° | ±2° |
| Wheel Base Diff. | ±0.03° | ±2° | ±2° |
| Wheel Base | ±0.02 cm | ±533 cm | ±533 cm |
| Track Width | ±0.02 cm | ±533 cm | ±533 cm |
